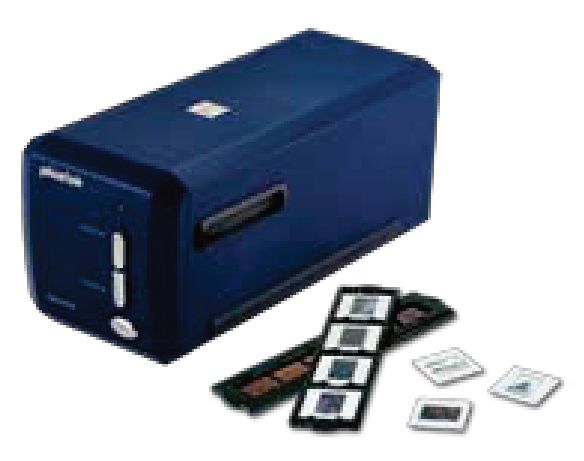

8100
Features
• 7200 x 7200 dpi optical resolution • 48-bit color input / output • SilverFast 8 software included • Plustek Multi-Sampling for better image result • SilverFast Multi-Exposure for increase dynamic range
Specification
1 mage Sensor
CCD
Light Source
LED
Hardware Resolution
7200 dpi
Scan Modes
Color: 48-bit input, 24/48-bit output Grayscale: 16-bit input, 8/16-bit output B/W: 1-bit
Dynamic Range
3.6
Scanning Speed
3600 dpi: Approx. 36 sec (Multi-Sampling ON) 7200 dpi: Approx. 113 sec (Multi-Sampling ON)
Scanning Area (W x L)
36.8 mm x 25.4 mm (1.45" x 1")
Preview Speed
Negative Film: Approx. 8 sec (Multi-Sampling ON) Positive Film: Approx. 8 sec (Multi-Sampling ON)
Action Button
IntelliScan, QuickScan
Power Supply
15 Vdc / 1.0 A
Interface
USB 2.0
Net Weight
1.6 Kgs (3.5 Lbs)
Dimensions (W x D x H)
120 x 272 x 119 mm (4.73" x 10.7" x 4.7")
OS
Windows XP / Vista / 7 MAC OS X 10.5 / 10.6 / 10.7
Bundled Software
Plustek QuickScan SilverFast SE Plus ME NewSoft Presto! PageManager
