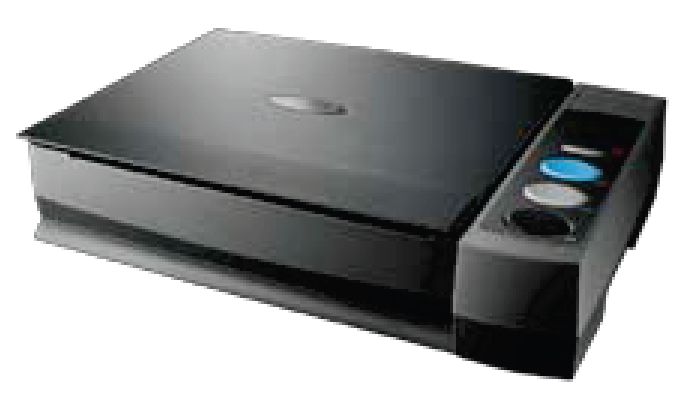

3800
Features
• 6mm book-edge • Shadow Elimination Element (SEE™ ) Technology • Fast scan speed 7 sec. for an A4-size color, grayscale, B/W scan at 300 dpi• Multifunction one-touch buttons
Specification
1 mage Sensor
CCD
Light Source
Cold Cathode Fluorescent Lamp
Optical Resolution
1200 dpi
Hardware Resolution
1200 dpi x 2400 dpi
Scan Modes
Color: 48-bit input, 24-bit output Grayscale: 16-bit input, 8-bit output B/W: 1-bit
Scanning Speed
7 sec (Color/ Grayscale/ B&W mode, 300dpi, A4)
Scanning Area (W x L)
216 x 297 mm (8.5" x 11.69", A4/ Letter Size)
Daily Duty Scan ( Sheets )
2,500
Action Button
Delete, Color, Gray, B/W
Power Supply
24 Vdc / 0.75 A
Power Consumption
< 18 W (operation), < 4.3 W (idle)
Interface
USB 2.0
Net Weight
3.4 Kgs / 7.6 Lbs
Dimensions (W x D x H)
453 x 285 x 105 mm (17.8" x 11.2" x 4.1")
Protocol
TWAIN Compliant
OS
Windows 2000 / XP / Vista / 7
Bundled Software
Plustek Book Pavilion Plustek DI Capture NewSoft Presto! ImageFolio NewSoft Presto! PageManager ABBYY FineReader Sprint
